Have more Charts by writing R codes inside Power BI: Part 3


In the previous parts (Part 1 and Part 2) , I have shown how to draw a chart in the power BI (Part 1) visualization. Also, in Part 2 I have shown how to present 5 different variables in just one single chart. In this post, I will show how to shows some sub plots in a map chart. showing pie chart already is possible in power BI map. In this post I am going to show how to show bar chart, pie chart and so other chart type in a map.

For this post, I have used the information and codes available in [1] and [2], which was so helpful!.

This may happen that we want to have some subplots in a map,  in R you able to show different types of chart in a map as a subplot.

To start, first setup your power BI as part 1. We need below library first to be installed in R software. Then you should use them in Power BI by referring to them as below.


Next we need data to show on the map. I have a dataset about different countries as below :


I have 3 different random columns for each countries,as you can see in above picture (I just pick that data from reference number[1]). I am going to create a chart to show these 3 values (value1, value2, and value3) in map for each country.

in Power BI visualization, first select the dataset (country, value1, value2, and value3). This data will store in variable “Dataset” in R script editor as you can see in below image.



I put the “Dataset” content into new variable name “ddf” (see below)

ddf =dataset

The second step is about finding the latitude and longitude of each country using function “joincountrydata2map“. this function gets the dataset “ddf” in our case as first argument, then based on the name of the country “joincode=”NAME” and in ddf dataset “country column” (third argument) will find the country location specification (lat and lon)for showing in the map. We store the result of the function in the variable “sPDF”

sPDF <- joinCountryData2Map(ddf    , joinCode = 'NAME'    , nameJoinColumn = 'country'    , verbose = TRUE)

Hence, I am going to draw an empty map first by below code




Now I have to merg the data to get the location information from “sPDF” into “ddf”. To do that I am going to use” merge” function. As you can see in below code, first argument is our first dataset “ddf” and the second one is the data on Lat and Lon of location (sPDF). the third and forth columns show the main variables for joining these two dataset as “ddf” (x) is “country” and in the second one “sPDF”  is “Admin”. the result will be stored in “df” dataset

df <- merge(x=ddf, y=sPDF@data[sPDF@data$ADMIN, c('ADMIN', 'LON', 'LAT')], by.x='country', by.y='ADMIN', all.x=TRUE)

Also, we need the “TeachingDemos” library as well.


I am going to draw a simple bar chart that show the value1, Value2, and Value 3 for each country. So I need a loop structure to draw barchart for each country  as below. I wrote “for(I in 1:nrwo(df)) that means draw barchart for all countries we have in “df” then I called a subplot as main function that inside I defined the barplot().

for (i in 1:nrow(df))
  subplot(barplot(height=as.numeric(as.character(unlist(df[i, 2:4], use.names=F)
          x=df[i, 'LON'], y=df[i, 'LAT'], size=c(.6, .6)


barplot() get values for height of each bar chart as a number (as.number). also I fetch the data related to “df” dataset from row number “i”, for columns from 2 to 4 (value 1 to value 3). To stet the colouring of the bar chart we use (col=rainbow(3)). “Y” axis should range values from “df” dataset for dataset df[,2:4].  the “x” axis get the latitude and longitude. The size of the bar chart can be changed by function “size=c(,)”.

then we have below picture:


To have better map, we need a legend on beside of the map. To do that I am using a function named “legend” that the first argument is the name of the legend as “top right”. the legend values comes from “df” dataset. we using the same colouring we have for bar chart.

legend('topright', legend=names(df[, 2:4]), fill=rainbow(3))

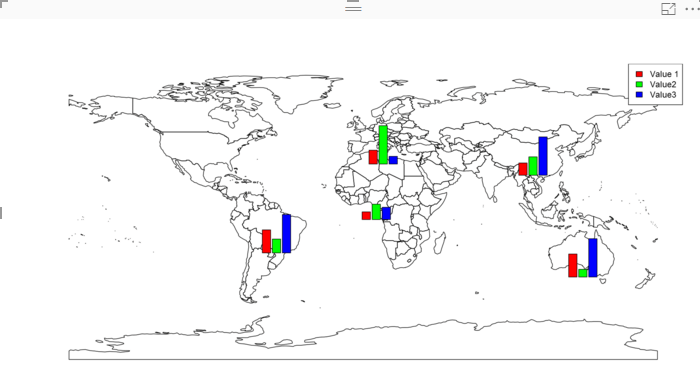

so at the end we have below chart


Now imagine that we want to have another type of chart in map as pie char or horizontal bar chart.

to do this, I need just changed the chart in Subplot as below

subplot(pie(as.numeric(as.character(unlist(df[i, 2:4], use.names=F))),

just replaces the bar chart with pie chart (use above codes).

so we will have below char



Or if we want to have a horizontal bar chart we need to just add a filed to our code for bar chart as below

 subplot(barplot(height=as.numeric(as.character(unlist(df[i, 2:4], use.names=F))), horiz = TRUE,


and we have below chart


there are possibility to add other types of charts in the map as well!
