Does it take a long time to get your data refreshed in your Power BI model? Should you wait for hours for the refresh to finish because you have complex transformations behind the scene? Does the long refresh time make it hard for you to develop your solution? The good news I have for you in this article is; how to use Power BI dataflows to help with reducing the refresh time of your Power BI models. I have previously explained some of the benefits of dataflows, and here is another one in action, let’s see how it can help. To learn more about Power BI, read Power BI book from Rookie to Rock Star.

The Problem: Slow Refresh Time

You have a Power BI file that takes a long time to refresh. The long refresh time can be because the data source is slow, or the set of transformations steps used are heavy and makes the process of data preparation a lengthy process. Having a long refresh time can cause a log of challenges, for example, you are doing a refresh to develop some changes, but due to the long refresh time, your development speed also reduces, and many other reasons. For example, the Power BI report below takes 5 minutes to refresh.

Note that 5 minutes for refresh is not a long refresh time. and I created that sample model for training purpose here. I’m just showing how to make it faster, even for a refresh that takes 5 minutes. You can apply the same method of refresh processes that take hours long.

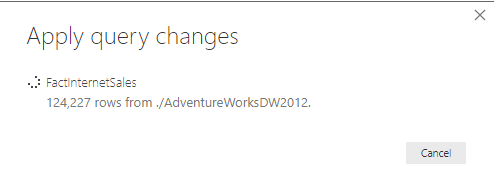

Now instead of us waiting for a long time to get this refreshing, and seeing a message like below, we want to speed it up;

The Solution: Push the Transformation to Dataflow

I have previously explained about Power BI dataflow and use cases of it, I also explained how to create your first dataflow. If you are new to Dataflow, here is a very brief explanation:

Power BI Dataflow is a set of Power Query transformations running in the Power BI service independent from a Power BI dataset.

A Power BI dataflow can run Power Query transformations, and load the output into Azure Data Lake storage for future usage. And that is exactly, how it can help with reducing your Power BI dataset refresh time.

If your dataset refresh takes a long time because you have applied a set of heavy data transformations in Power Query, then what you can do instead is to push that set of heavy transformations to a dataflow. That way, the transformations happen on a different process, it loads the output into Azure Data Lake storage of Power BI service, and then you can use that output as the input of the Power BI dataset. The diagram below shows what I’m talking about:

Instead of doing the heavy lifting work in Power BI, just push them all to dataflows, and your data refresh time in Power BI dataset would be super fast! That said, you still need to schedule the refresh of the dataflow in the service. However, because that can run on a different schedule than the Power BI dataset itself, then you don’t have to wait for the refresh to finish to get you development work done. Now let’s see an example of such implementation.

Create a Dataflow from Blank Query

I am not going to explain how to create a dataflow, because that needs some prerequisite steps to be done such as creating a workspace version 2, and having the right access to create dataflow and so on. I have written an article about how to create your first dataflow, which you can read here. So let’s start here at the time of choosing what to do with the dataflow creation, first is to create the dataflow;

Choose Define new entities

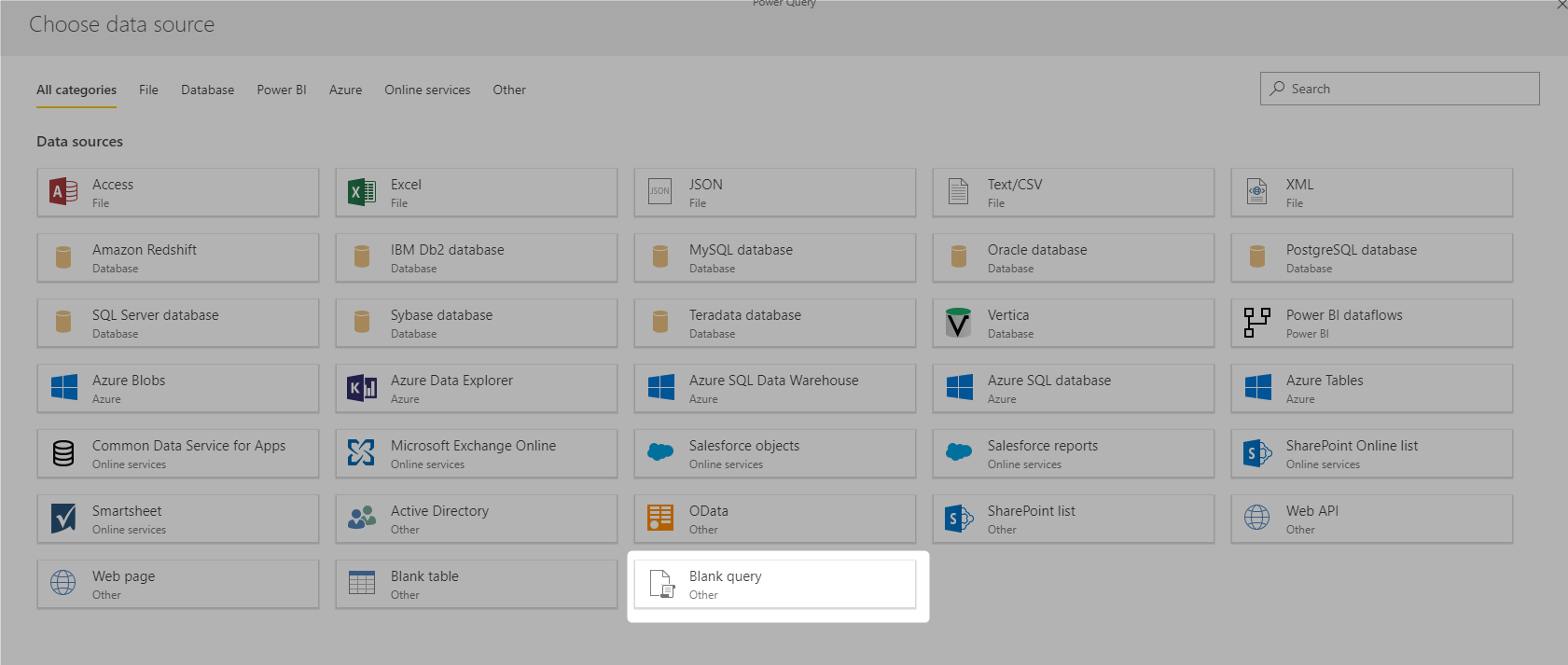

Choose the data source as a Blank Query;

Copy the Query from Power BI Desktop to Dataflow

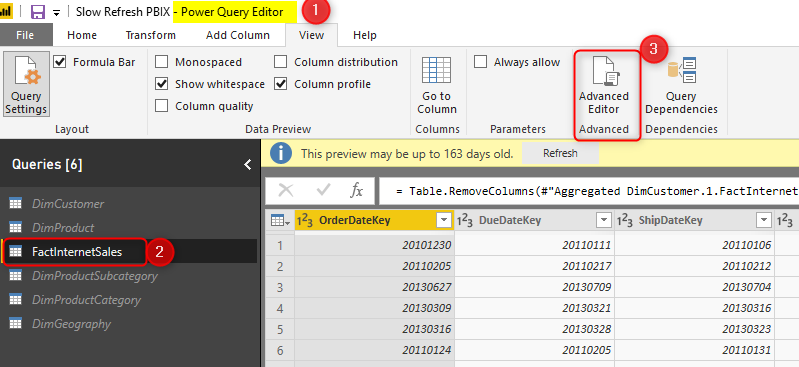

Moving your Power Query transformations from Power BI Desktop to Dataflow is as simple as copy and paste. You can copy the M script from the Advanced Editor of Power BI Desktop, and then paste it in the advanced editor of Dataflow. That’s it. Here is how it works. I open the Power Query in Power BI Desktop using Edit Queries and then selecting the query and going to Advanced Editor;

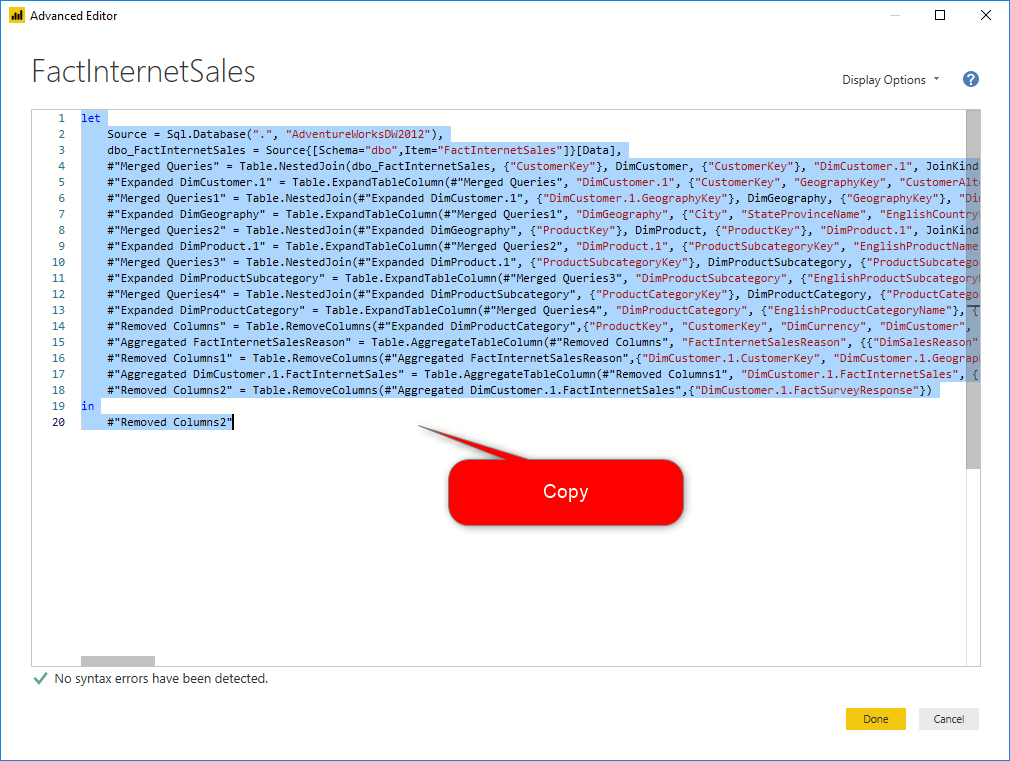

Copy the M script from there;

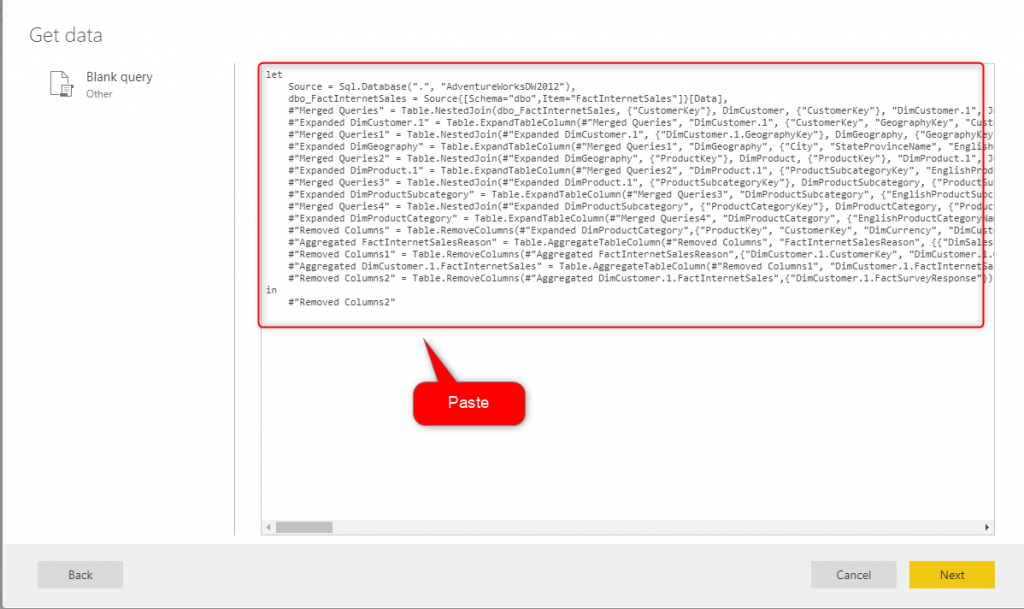

Then paste it in Power BI dataflow (under creating a blank query that we did in the previous step, or by using right-click and choosing advanced editor on an existing query);

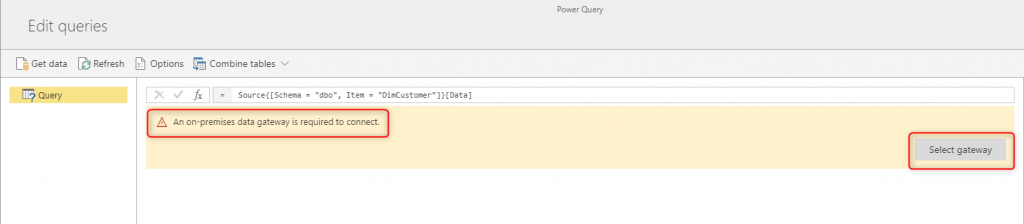

After pasting it, you might get a message asking about on-premises data gateway (in case, you use an on-premises data source in your script);

The message is: An on-premises data gateway is required to connect.

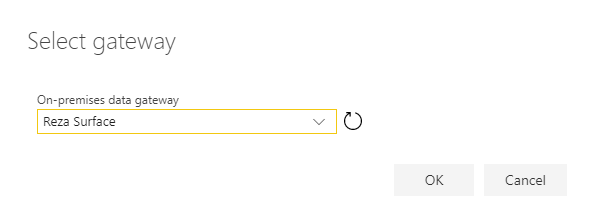

Then select the gateway;

and click on OK. If your gateway setup is fine, then you should be able to go to the next step. Gateway is another component needed in the Power BI toolset if you are connecting from Power BI service to an on-premises (local domain) data sources. I have written an article explaining everything about the gateway, read it here.

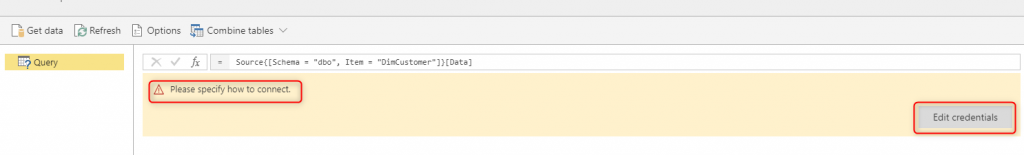

Depends on if you used that step before or not, you might get a message about Editing credentials;

The message is: Please Specify how to connect.

Depends on the data source you are using, set the credential to access to it, and then connect.

Then you should see the data loaded in the graphical editor of Power Query in the dataflow.

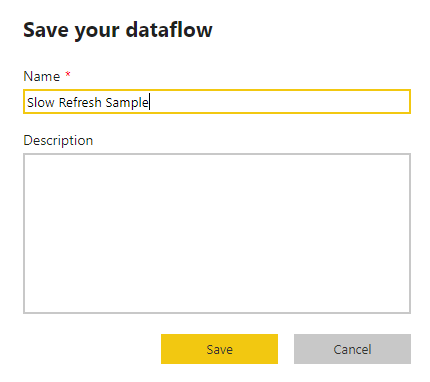

You can then click on Close and Save, and Save your dataflow;

Few Notes for Moving Your Queries

If you are moving your queries from Power Query in Power BI Desktop to Power Query in the Dataflow, there are few notes to consider, let’s talk about those here;

  • Gateway might be needed.
  • You might need moving more than one query to move the transformation process.
  • If you have queries sourcing each other, you might end up with creating Computed Entity

Gateway might be needed

In Power BI Desktop, and also the Power Query in the Power BI Desktop, you don’t need a gateway to connect to your local domain (or what we call on-premises) data sources. You just connect to it directly. However, Dataflow is a service feature, and in order to connect to an on-premises data source, it needs a gateway setup. If you are getting data from an online data source, such as Google Analytics, or Azure SQL database, you won’t need a gateway. However, if you are getting data from an on-premises data source, then you would need to have gateway setup, and then select it in the dataflow, like what we did in the previous step.

Gateway setup and configuration is a long process itself, I have written about it in an article; Everything you need to know about Power BI Gateway.

You might need moving more than one query to move the transformation process

Sometimes, In Power Query, you combine tables with each other using Merge or Append (read more about Merge and Append here). In such scenarios, you need to make sure that you get all tables needed into dataflow as well. A script cannot run if all relevant queries to that are not in the same process.

If you have queries sourcing each other, you might end up with creating Computed Entity

If you have a scenario such as what I mentioned above using Append or Merge, or any other scenarios that use the output of one query in another query, then you might end up with the creation of a Computed Entity in Dataflow. Computed Entities are generated when you source from another query, and that query itself is also set as “Enable Load”. Computed Entity is a dataflow-only concept, and does not exist in Power Query in Power BI Desktop.

Creating Computed Entities is good for performance because it will do transformations step by step, using the result of previous transformations which is loaded as an output of another query in the Azure data lake storage. However, Computed Entity is a Power BI Premium-only feature, and if you don’t have premium licensing, then you might find it hard to move your transformations to the dataflow. I have written an article about what Computed Entity is, and also another article about a workaround for Computed Entity using Power BI Pro account.

Schedule Dataflow to Refresh

After creating the dataflow, and saving it. Now you can set it to refresh using Schedule Refresh;

Power BI Desktop Get Data from Dataflow

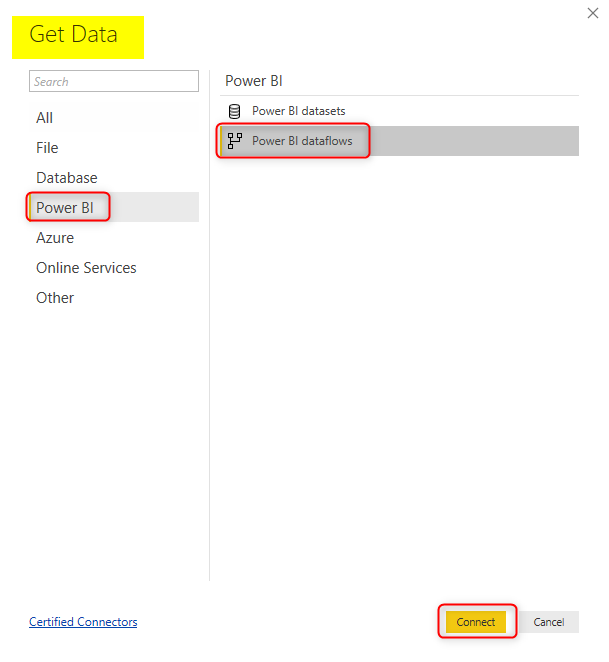

As the last step of this sample, you need to get data from dataflow using Power BI Desktop. Doing the process in this way, you are getting the data that is already transformed and stored in Azure data lake storage of Power BI dataflows. Start by getting Data from Power BI dataflows;

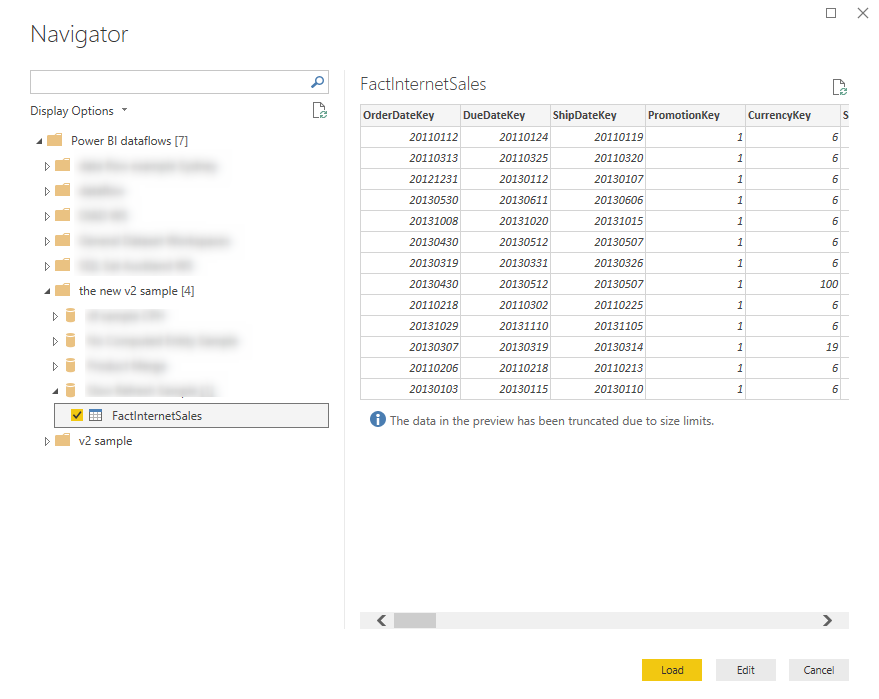

After logging into the dataflow using your Power BI account, you can choose the workspace that contains the dataflow, then under dataflow, select the entity or entities you want, and then load.

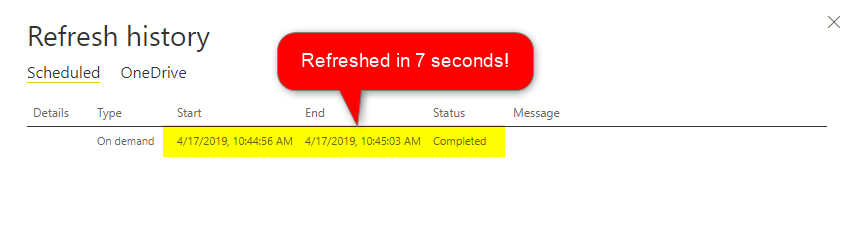

Now Let’s see how long this new Power BI file takes to refresh. Here is the sample refresh length of that file;

I let you do the math to see how faster it is compared to 5 minutes refresh time that you have seen at the beginning of this example. This would show even much more effective if applied on data refresh scenarios that take hours to complete.

Summary

You learned through this article, that you can move your Power Query transformations to Power BI dataflows rather than the PBIX file itself to make the refresh time faster. The method you learned in this article, does make your refresh time faster, but it doesn’t make your Power Query transformations process faster! Using this method, we just move the heavy part of the refresh of Power BI dataset which is for heavy lifting Power Query transformations to a separate process in the Power BI service; Dataflow. That Power Query transformation is still taking a long time to run. However, now it is independent of your dataset. You can schedule that process separately. In other words;

Using dataflow, you can separate the heavy lifting transformations in the ETL (Extract, Transform, Load) process from the refresh of Power BI dataset.

I hope this method helps you in shortening your dataset refresh time if you have any comments or feedback or questions, please don’t hesitate to share it in comments below.

Facebooktwittergoogle_plusredditpinterestlinkedintumblrmailFacebooktwittergoogle_plusredditpinterestlinkedintumblrmail
rssyoutuberssyoutube
Reza Rad on FacebookReza Rad on LinkedinReza Rad on TwitterReza Rad on Youtube
Reza Rad
Trainer, Consultant, Mentor
Reza Rad is a Microsoft Regional Director, an Author, Trainer, Speaker and Consultant. He has a BSc in Computer engineering; he has more than 20 years’ experience in data analysis, BI, databases, programming, and development mostly on Microsoft technologies. He is a Microsoft Data Platform MVP for eight continuous years (from 2011 till now) for his dedication in Microsoft BI. Reza is an active blogger and co-founder of RADACAD. Reza is also co-founder and co-organizer of Difinity conference in New Zealand.
His articles on different aspects of technologies, especially on MS BI, can be found on his blog: https://www.radacad.com/blog.
He wrote some books on MS SQL BI and also is writing some others, He was also an active member on online technical forums such as MSDN and Experts-Exchange, and was a moderator of MSDN SQL Server forums, and is an MCP, MCSE, and MCITP of BI. He is the leader of the New Zealand Business Intelligence users group. He is also the author of very popular book Power BI from Rookie to Rock Star, which is free with more than 1700 pages of content and the Power BI Pro Architecture published by Apress.
He is an International Speaker in Microsoft Ignite, Microsoft Business Applications Summit, Data Insight Summit, PASS Summit, SQL Saturday and SQL user groups. And He is a Microsoft Certified Trainer.
Reza’s passion is to help you find the best data solution, he is Data enthusiast.

9 Comments

  • Hi Reza,
    Great blogpost, one of the challenges I found with dataflow development is that (as a dev) you still need to download the data to your local .pbix environment before creating a dataset *which is compressed data. You actually see this in Power BI Desktop if you select dataflow as source. (E.g) So a 16 trillion row dataset can be around 7 GB’s. Having multiple fact tables can be time consuming to load initially in your local Power BI Desktop file. Any suggestions or workarounds?

  • Hi Reza,

    Great blogpost! The benefits of a dataflow are really clear! However I see a challenge, in local Power BI Desktop development you then connect to a PBI dataflow (as a data source) if you want to create a new Tabular Model (Power BI dataset). This means that you have to download the data from Azure storage to your local environment. you see this happening every time you connect to a Power BI dataflows object within Power BI Desktop.

    What if you have a 50 million/billion fact table? or multiple tables? In order to develop and publish a datamodel you have to download approx 20 GB’s of data to local environment… so in good development practise we should only ‘cap’ large Fact tables in the query editor, and than release the ‘cap’ in the Power BI service.

    Any thoughts or suggestions on this topic of local loading of data from ‘dataflows’ to Power BI Desktop?

    KR,

    Michiel

    • Hi Michiel
      Thanks for your comments.
      I answer both of your questions in one 🙂
      At the moment getting data from dataflows is only doing it via import. In the future, we MIGHT have the ability to do it using DirectQuery. and If that comes, then it also opens the door for composite models and aggregations.
      In the meantime; It is correct. You have to load the entire data into Power BI to process it. However, moving transformations to dataflow still helps, because you just LOAD the data. Transformations is already done in the dataflow.
      If you can use features such as Incremental load which is premium only at the moment, you will be able to do it with not loading the entire data each time.
      There are other workarounds as well for incremental load, such as loading data into tables, and disabling the refresh of those tables at, etc. all of these are workarounds of course. Because the size of data is so large in your case that preferably needs dedicated compute to work with.
      Cheers
      Reza

  • Reza, but what about the refresh time for the dataflow? How long does it take in this example? Only after comparing this time I can see a benefit, if exists. Otherwise, it doesn’t make sense to refresh de dataset if the dataflow did not refresh.
    Correct?

    Bests!!

    • The refresh time of the dataflow is still similar to the original refresh time we had in Power BI dataset. Because we haven’t changed anything in the data transformation. It is the same transformation running elsewhere.
      However, the benefit of this approach is that you do not have to WAIT for your refresh to finish to do something. the refresh of Power BI is fast, you just need to make sure that the dataflow refreshes on the periods you want it too. It is a matter of separating the data transformation scheduling from the loading schedule.

  • Reza,
    Great article, I appreciate the time you’ve taken to illuminate all these functionalities. We’re currently working off a Power Query // Excel // Sharepoint environment to build Shadow IT data warehousing for project financial management. Is there an update to Power Query in Excel that will allow access to these dataflows in the future? This would massively improve performance in a big way by pushing hundreds of SP access queries to the datalake instead of Sharepoint and Excel APIs.

  • It is also worth noting that using Dataflows allows reuse of the transformed data among multiple datasets, so the time saving benefit is now multiplied.
